Mira Connect Controls Extron Video Switchers

 In Blog, Video

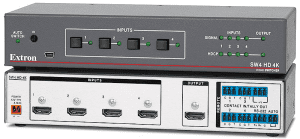

Mira Connect controls Extron video switchersMira Connect supports Extron’s presentation and matrix video switchers, controlling the switchers over RS-232 or Ethernet, depending on the model.

In addition to controlling video switching, Mira Connect has added support for the controlling the audio DSP features of the Extron DTP CrossPoint 4k series and the DTP CrossPoint 84 presentation matrix switchers.

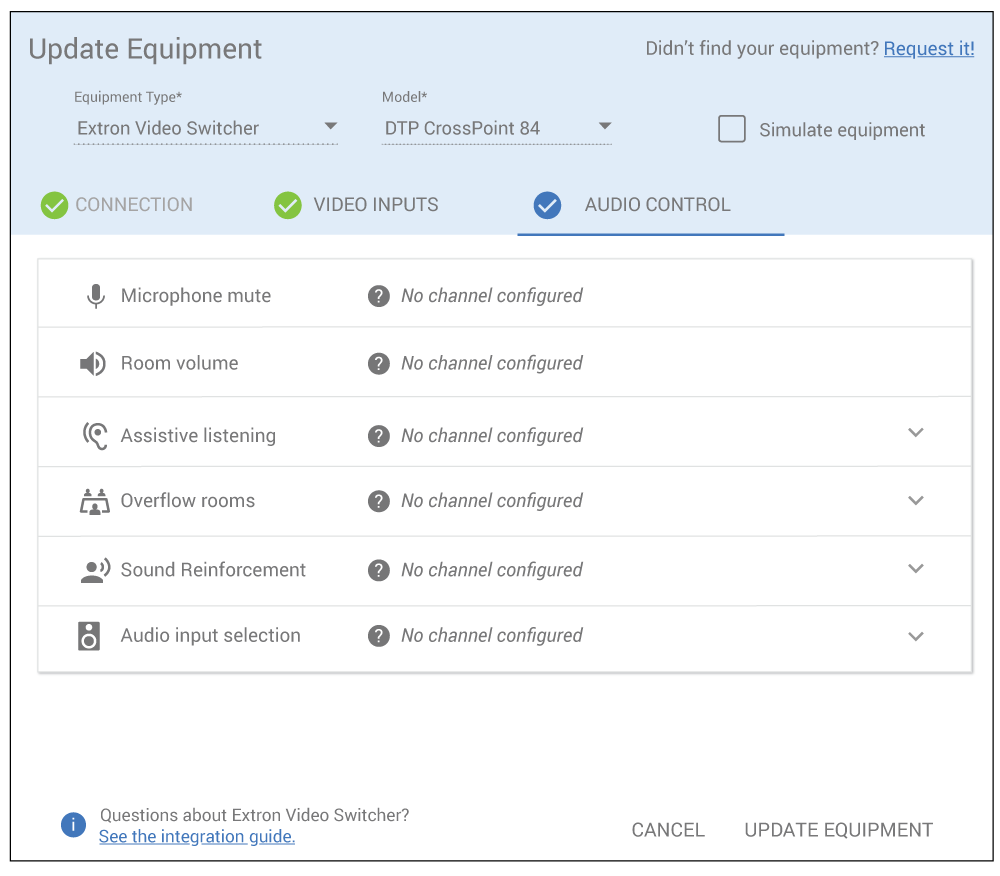

The Audio DSP features of the video switcher family are configured just like other supported audio DSP’s using the Audio Control tab in Mira Portal as shown below.

Now you can easily control stereo or mono audio associated with the inputs, crosspoints, and outputs. See the updated Extron integration guide for details.

Mira Connect is a smart control appliance that allows you to control Extron video switchers AND all the other audiovisual equipment in a conference room with one intuitive touchscreen system. Easy to set up and easy to use, Mira Connect offers one-touch dialing, integration with Office 365 Calendar to see upcoming meetings, and remote management capabilities to control a Mira Connect from anywhere.

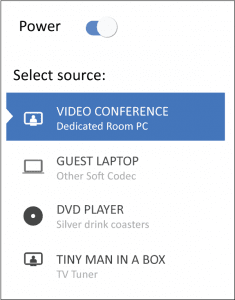

Mira Connect makes it easy for users by showing a single display menu, even if some video sources are connected to the video switcher and some directly to the display. Users can simply select the desired input from the menu, and Mira Connect does the rest, including powering on the display and selecting the proper sources on the connected devices.

With the addition of Extron video and audio switcher support, Extron’s family of USB switchers can also be used with the video switcher to control the Extron USB switcher’s USB selection by connecting the logic outputs of the video switcher to the USB switcher’s contact closures. This makes it easy to switch USB peripherals – including VISCA-compatible PTZ cameras and DSP audio systems – with USB audio connections to a dedicated room PC and a guest laptop, for example, by just selecting the video source to display.

Now room participants can select the desired video source (such as a dedicated room PC), and the USB switcher will follow the selection, assigning USB room resources (such as DSP audio and PTZ cameras) to the dedicated room PC.

To learn how to integrate Extron video switchers with Mira Connect, see our Extron integration guide.

You can also try it yourself with our Mira Connect UI Preview, a feature we’ve added to make it easier to demonstrate Mira Connect and show how the finished system will look – even when you don’t have a Mira Connect touchscreen yet.
